Service line

male/female PN10
for gas/water

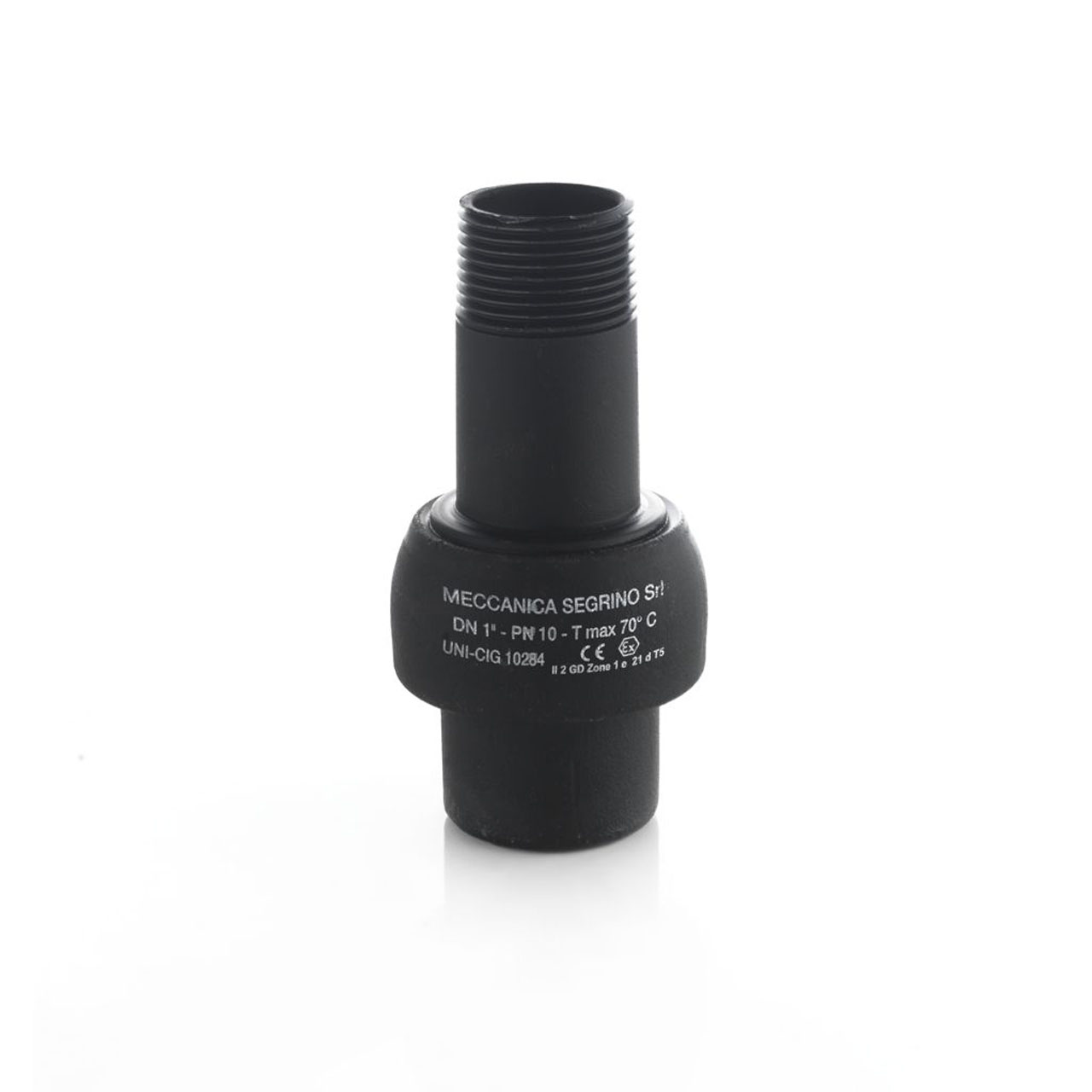

PN10 insulating joints are steel joints used for the sectioning of low pressure (10 kg/cm2) service lines for gas and water. Insulating joints provide cathodic protection in all piping systems and serve as a positive leak proof long lasting block against the flow of electrical current. The installation of insulating joints on service lines guarantees a superior security of the pipeline and significantly reduce maintenance costs.
The Male-Female PN10 joints are threaded joints (external taper thread and internal parallel thread ISO7/EN10226-1) completely factory assembled. These characteristics make the installation easy and fast. Male Female PN10 joints are available in small diameters ranging from ½ in up to 4 in (see the whole range of diameters available in the table below).
PN10 Male Female insulating joints are supplied from stock. Meccanica Segrino insulating joints are manufactured in accordance with the requirements of UNI-CIG, ASTM and API.Insulating Joints tested and manufactured in accordance to UNI-CIG 10284
