main line insulating joints PN100
ANSI 600

Mainline (PN64-100)

main line insulating joints PN100
ANSI 600

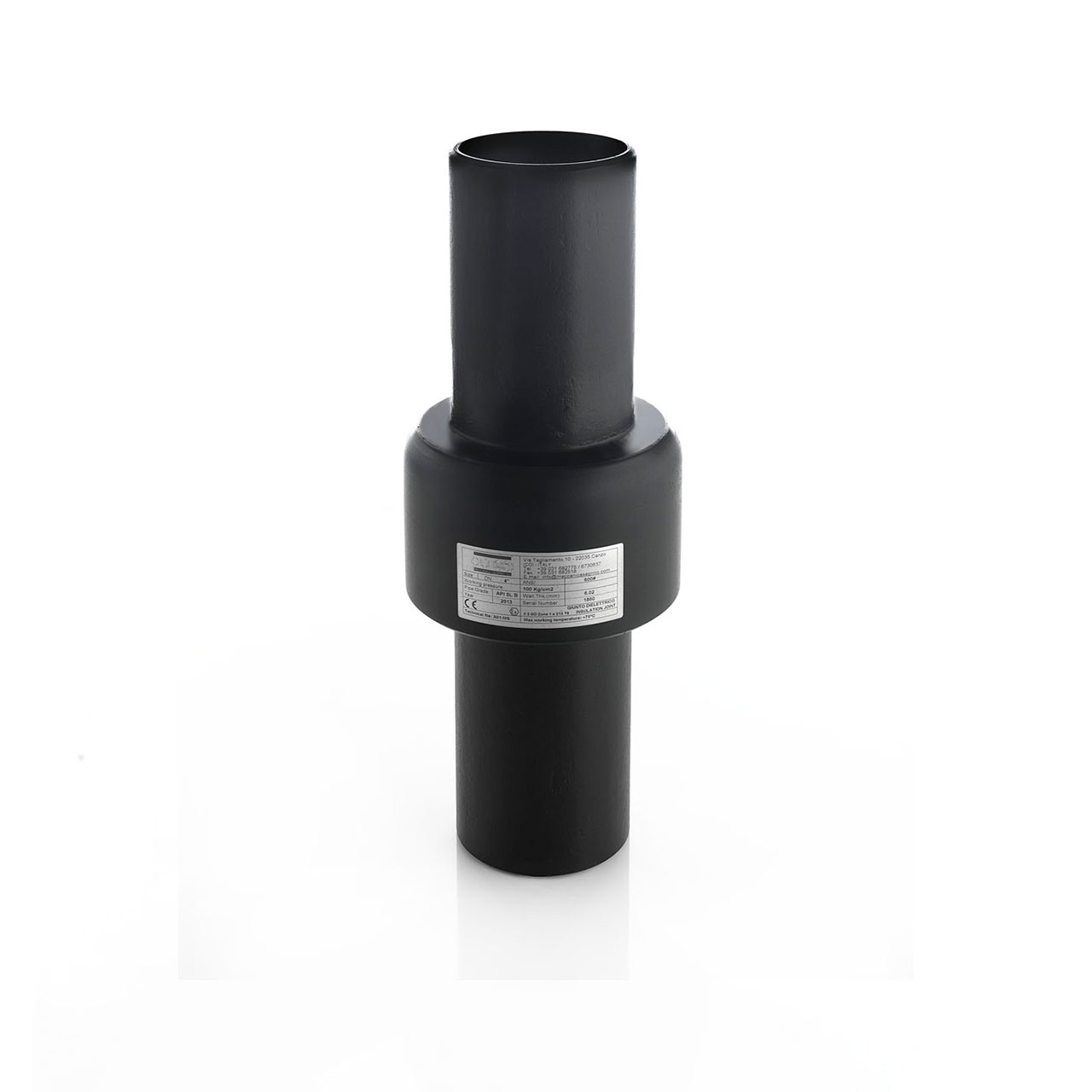

ANSI 300-600 joints are insulating joints with welded ends that can operate with working pressure up to 100kg/cm2. The ANSI 300/600 insulating joints are installed on buried steel pipelines for gas, water and other fluids. The most common application of ANSI 300/600 insulating joints are gas supply system (UNI EN 1594), gas distribution network (UNI 9165), gas service pipe (UNI 9860) and, more in general, all the buried pipelines that should be protected against corrosion (cathodic protection) no matter the conveyed fluid.

CODE DP (BAR) ND (INCHES) ND (MM) DT (°C) PRICE (€) Q.TY
P0151001001/2"21.3-10°C+70°C€ 49,00
P0201001003/4"26.7-10°C+70°C€ 52,00
P0251001001"33.4-10°C+70°C€ 60,00
P0321001001"1/442.2-10°C+70°C€ 75,00
P0401001001" 1/248.3-10°C+70°C€ 85,00
P0501001002"60.3-10°C+70°C€ 101,00
P0651001002"1/276.1-10°C+70°C€ 132,00
P0801001003"88.9-10°C+70°C€ 180,00
P1001001004"114.3-10°C+70°C€ 255,00
P1251001005"141,3-10°C+70°C€ 410,00
P1501001006"168,3-10°C+70°C€ 550,00
P2001001008"219,1-10°C+70°C€ 760,00

Insulating joints with specifications other than those indicated in the table are available on request by filling out the form available at this link.

Working temperature -10°C + 70° C

Electrical insulation resistance in dry air 5 Mohm

Dielectric resistance in dry air 3.0 Kv

Testing pressure 150 Kg/cm2

Working pressure 100 Kg/cm2


MECHANICAL FEATURES

Pipe Steel Material: Steel API 5L/EN 10208-2 or equivalent
Central body steel material: Steel ASTM A 105 or equivalent
Ends to be welded : API 5L/EN 10208-2
Bevel = 30° +5/-0°
